Description:

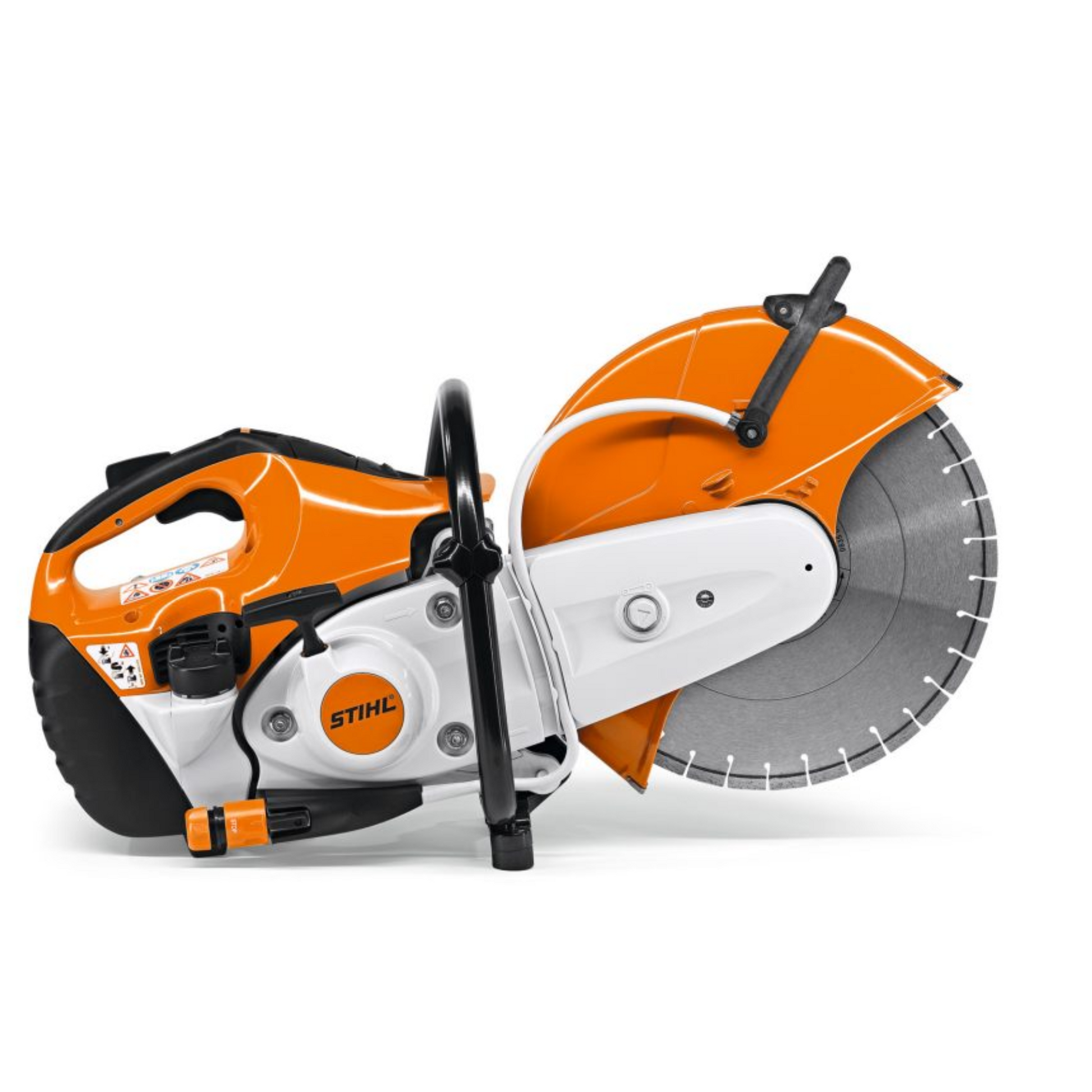

The TS 420 is a compact, reliable and lightweight Concrete Saw with a 350mm cutting wheel. The STIHL anti-vibration system aids comfort, handling and precise cutting. The premium filter system protects the engine ensuring clean, smooth running and reduced maintenance of the air filters. The decompression valve assists easier starting.

This Concrete Saw comes with a Composite Cutting Wheel as standard, a Diamond Cutting Wheel is not included.

NOTE: Your Concrete Saw will require engine oil. We recommend STIHL HP TWO STROKE ULTRA ENGINE OIL for your machine.

Features:

• Manual Fuel Pump
• Function: Reduces the number of starting strokes required.
• Benefit: Makes start-up quicker and easier, especially after longer breaks in operation. Actuate the pump several times before starting to ensure enough petrol is in the carburettor.
• STIHL 2-MIX Engine
• Function: Provides efficient fuel consumption and reduced emissions.
• Benefit: Ensures optimal performance and environmentally friendly operation.
• Long-Life Air Filter System (Cyclone)
• Function: Uses cyclone air routing to separate and discharge coarse dust particles.
• Benefit: Removes around 80% of dust particles from intake air, extending filter service life and simplifying maintenance.
• STIHL Anti-Vibration System
• Function: Incorporates buffer and spring elements to reduce engine vibrations transmitted to the handle.
• Benefit: Provides a more comfortable grip and reduces fatigue during extended use.
• Semi-Automatic Belt Tensioning
• Function: Facilitates easy re-tensioning of the drive belt using an adjustment screw.
• Benefit: Extends the belt's service life and improves overall durability. For detailed re-tensioning instructions, refer to the operating manual.
• Decompression Valve
• Function: Allows some compressed mixture to escape from the cylinder during start-up.
• Benefit: Makes the start-up process easier, reduces strain on the starter cord, and protects the start-up system.
• Compensator
• Function: Maintains engine performance, exhaust quality, and fuel consumption despite increasing air filter contamination.
• Benefit: Reduces maintenance needs by allowing you to work longer without needing to clean the air filter until performance drops.

Specifications:

• Displacement: 66.7 cc
• Engine Power: 3.2 kW
• Weight: 9.6 kg
• Cutting Wheel Diameter: 350 mm
• Maximum Cutting Depth: 125 mm
• STIHL Engine Type: 2-MIX
• Semi-Automatic Belt Tensioning: Yes
• Wear Resistant Starter Cord: Yes
• Power Source: Petrol
