Description:

Standard Features

• Overhead Valve design with steel cylinder liner and ball bearing crankshaft
• Electronic ignition and automatic decompression for fast and easy starts
• Two sided oil-fill / drain locations to fit more applications
• Large muffler for quiet operation

Options

• Low oil level alert systems
• Cyclone, oil bath, dual element or standard type air filters
• Many Crankshaft PTO configurations to fit most applications
• PTO speed reduction systems
• Super silent mufflers

Applications

• Tillers
• Water Pumps
• Turf Equipment
• Go-Karts
• Wood Splitters
• Snowblowers
• Pressure Washers
• Construction equipment

Warranty

• 3 year limited warranty

Specification:

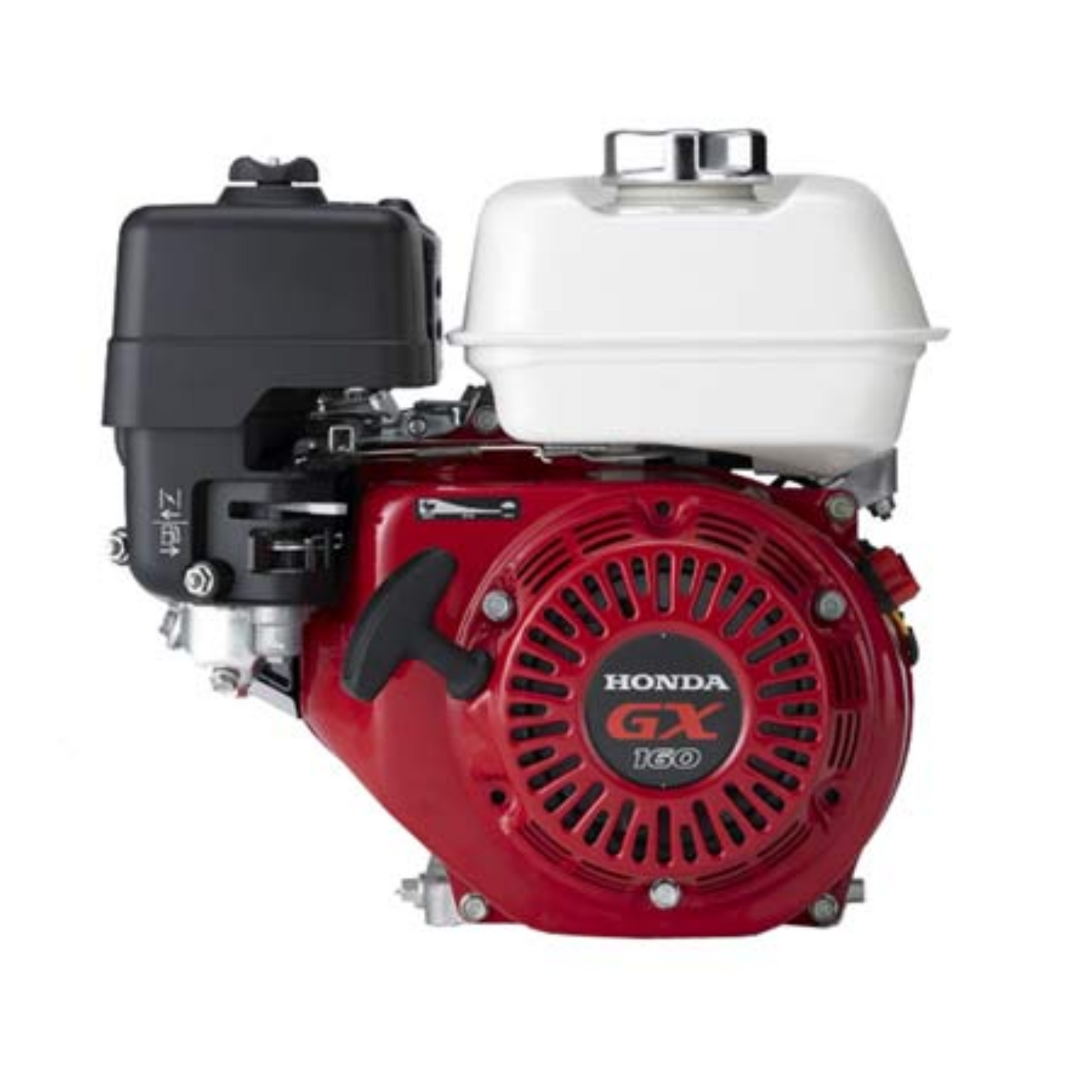

• Model: GX160QX
• Price: $707.00
• Shaft Diameter: 3/4"
• Starting System: Recoil
• Air Filter: Dual Element
• Electric Start Capability: Yes (noted with '–')
• Weight: 15.5 kg / 34 lbs
• Engine Type: Air-cooled, 4-Stroke, OHV, single cylinder
• Bore x Stroke: 68 x 45 mm (2.7 x 1.8 in)
• Displacement: 163 cm³ (9.9 cu in)
• Compression Ratio: 8.5 : 1
• Net Horsepower Output: 3.6 kW (4.8 HP) at 3,600 rpm
• Net Torque: 10.3 Nm (7.6 lbs ft) at 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Ignition System: Transistorized magneto ignition
• Carburetor: Horizontal type butterfly valve
• Lubrication System: Forced Splash
• Governor System: Centrifugal Mechanical
• Oil Capacity: 0.6 l (0.63 US qt, 0.53 Imp qt)
• Fuel Tank Capacity: 3.1 l (3.3 US qt)
• Dimensions (L x W x H): 305 x 341 x 318 mm (12.0 x 13.4 x 12.5 in)
