Description:

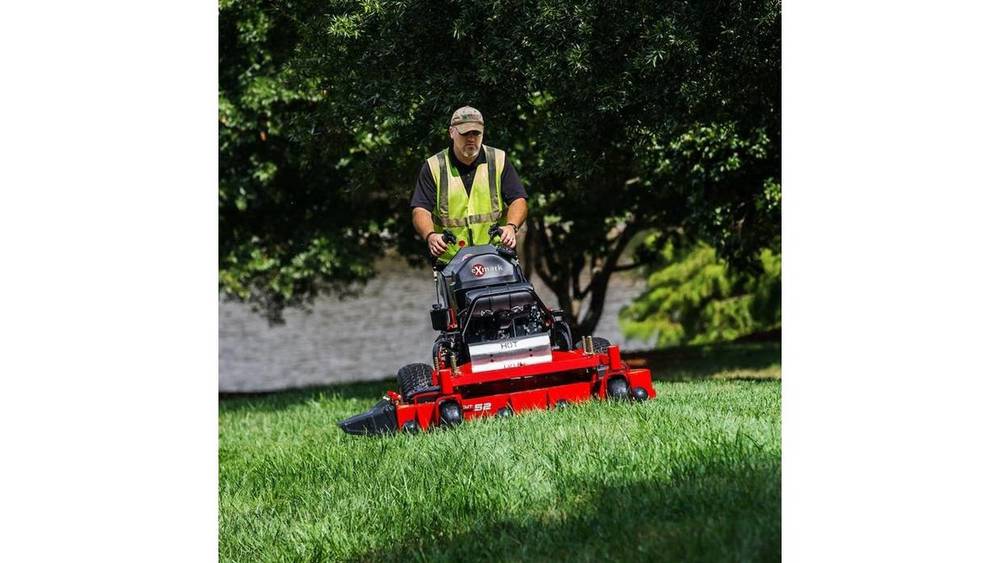

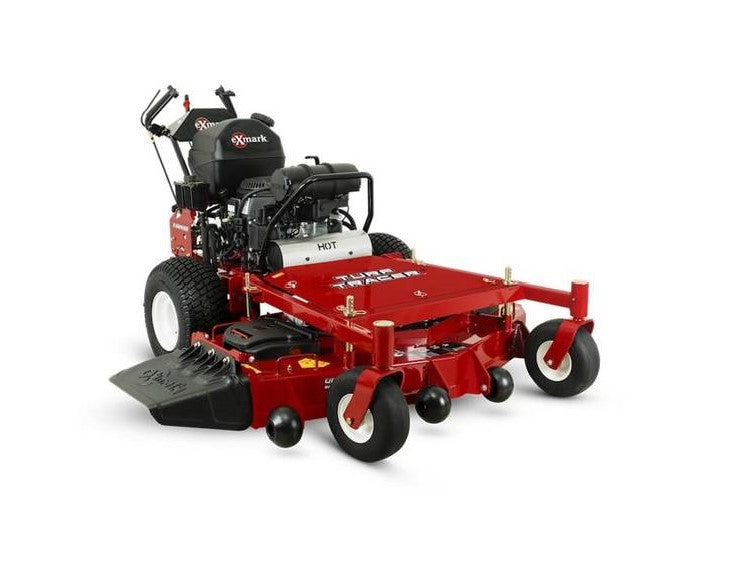

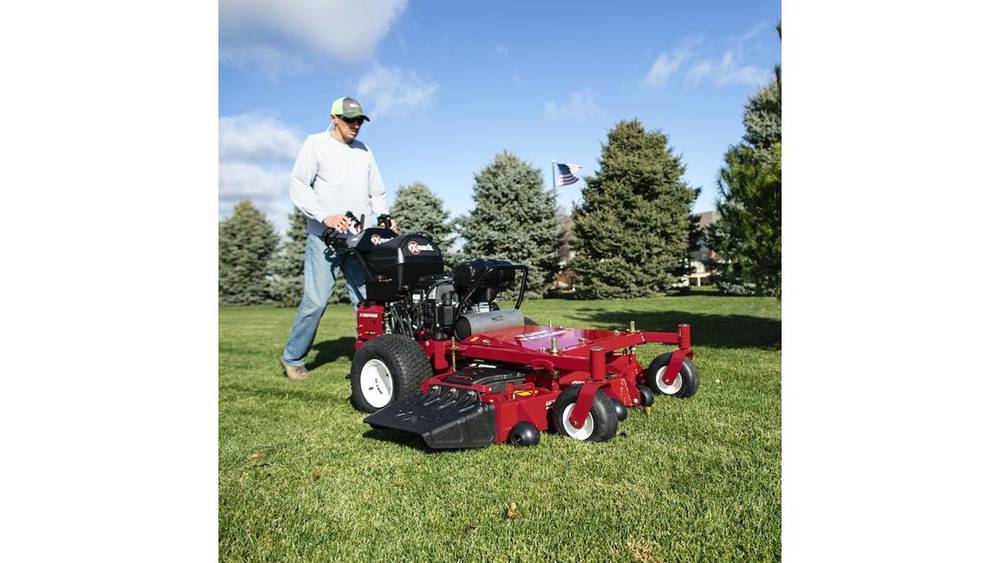

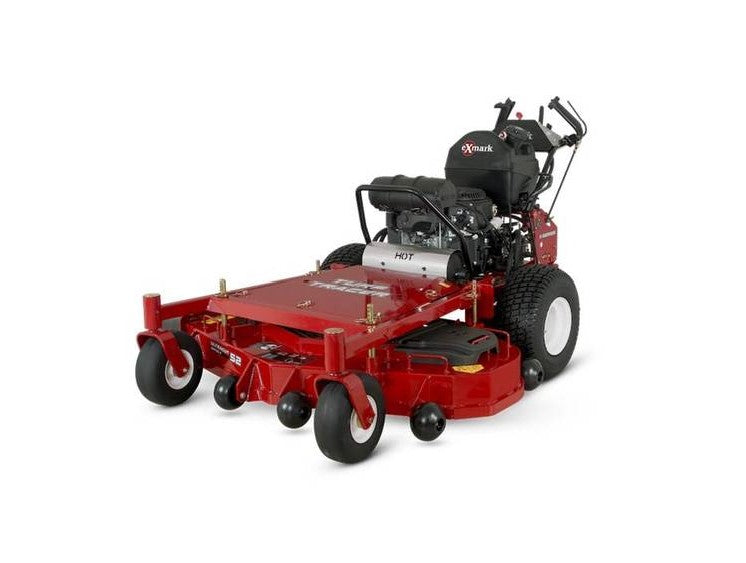

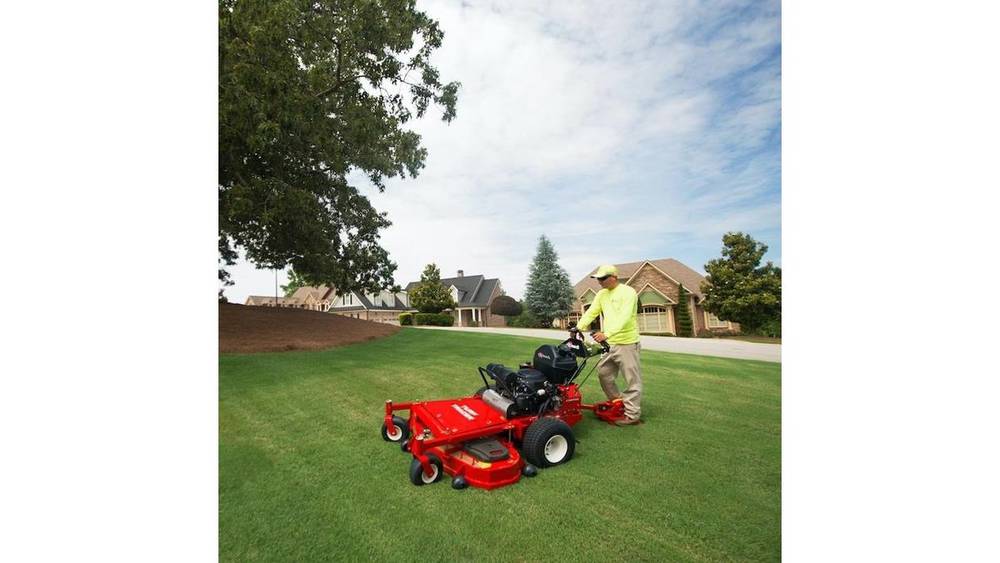

The Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI, Kawasaki® and Kohler EFI Propane. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.

Features:

• Patented Enhanced Control System (ECS)
• Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch
• A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life
• Turf Tracer X-Series, you can choose up to a 60-inch deck
• An eco-friendly, lower cost fuel reduces operating expenses versus typical gas-powered mowers
• Superior Air Filtration
• UltraCut™ Series 4 deck

Specifications:

• Equipment:
• Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn
• Casters: .38" thick caster yoke arms
• Front Caster Tires: 11 x 4.0-5, smooth tread, semi-pneumatic
• Drive Tires: 18 x 8.5-8, 4-ply Turf Master®
• Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
• Parking Brake: Lever-actuated mechanical compression
• Electrical: 12-volt battery with 20-amp alternator
• Standard Features: Enhanced engine hour meter
• Power Components:
• Engine Model: ECV650
• Engine Brand: Kohler
• Engine Series: Command™ EFI
• Engine Speed: 3,600 rpm
• Air Filter: Heavy-duty canister air filtration system
• Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts
• Speed: Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse
• PTO Engagement: Electromagnetic 200 ft-lbs clutch.
• Fuel Capacity: 5-gallon (18.9-L) fuel tank
• Drive Wheel Release: Allows unit movement without engine running.
• Deck Lift: Manual lift with hairpin from hole to hole for position adjustment
• Fuel System: Electronic Fuel Injected
• Engine Displacement: 694
• Engine HP: 21*
• Drive: Hydro-Drive
• Fuel Indicator: None
• Carb Compliant: Yes
• Fuel Type: Gas EFI
• Engine Spec: 3017
• Decks:
• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch
• Width / Cutting Deck: 60"
• Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 10-gauge formed and welded spindle mounting locations for improved strength
• Cutting Heights: 1.5" (3.8 cm.) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments
• Blade Spindles: No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver
• Blade Tip Speed: Approximately 18,500 fpm.
• Blades: 3 Blades at 20.5" Length
• Dimensions:
• Width: 73.0 in
• Length: 84.8 in
• Height: 45.0 in
