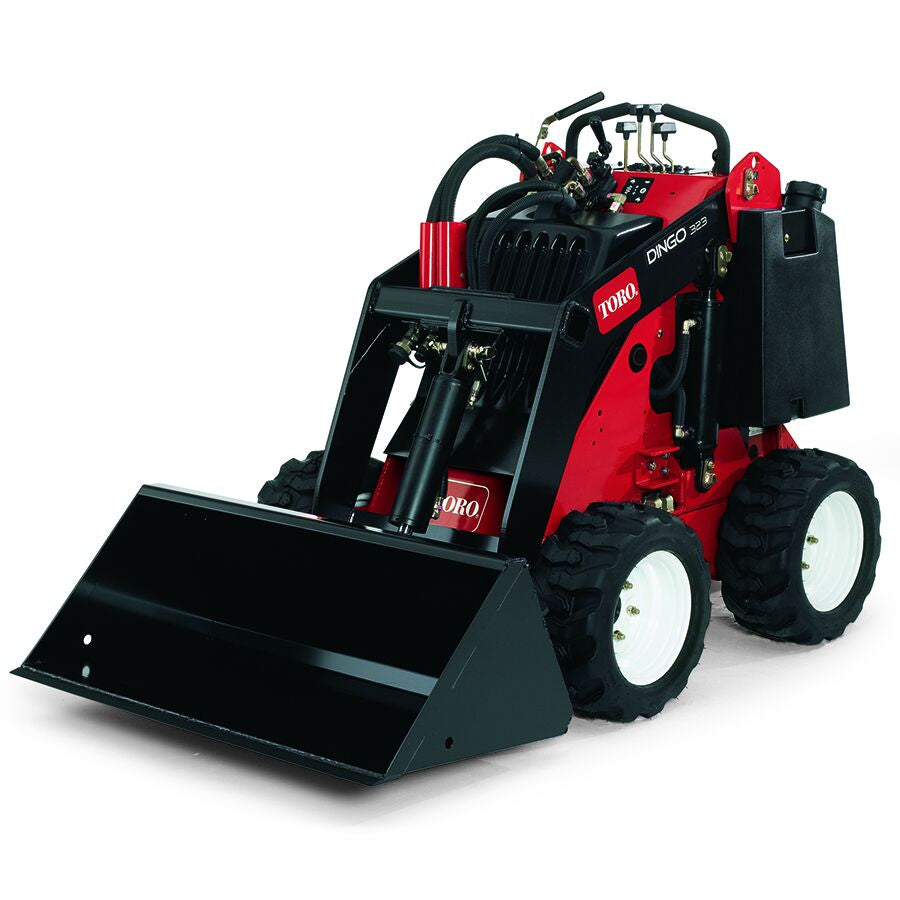

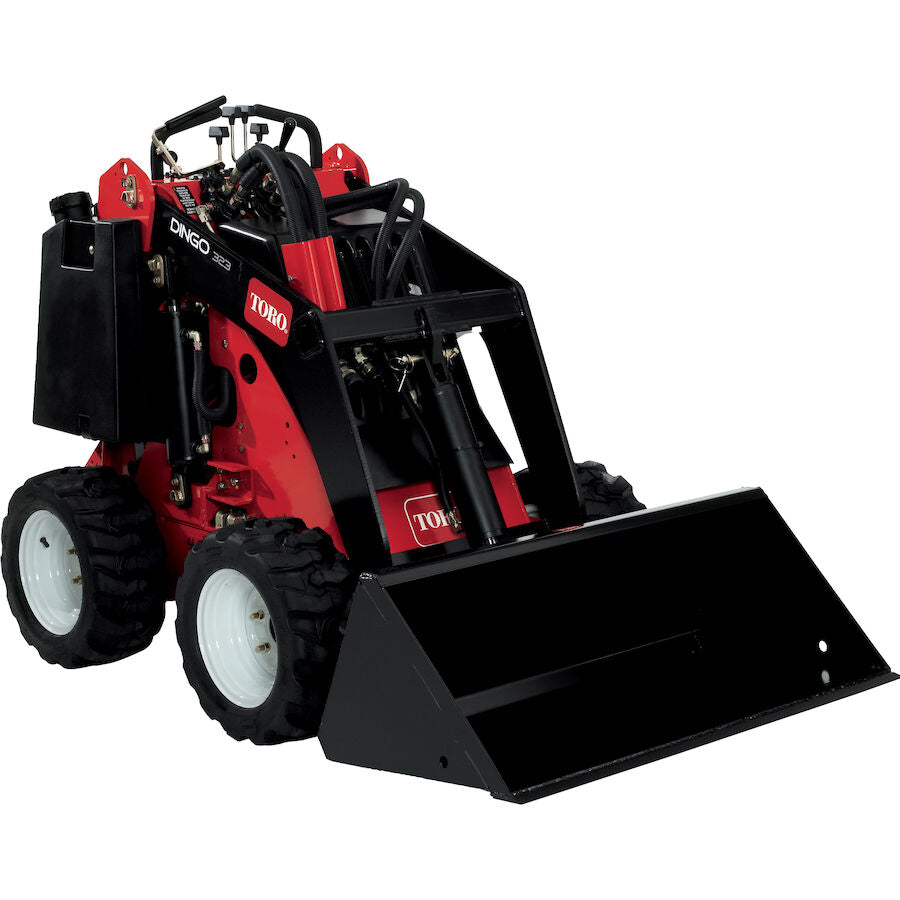

TORO 22318 DINGO 323 Mini Skid Steer

TORO 22318 DINGO 323 Mini Skid Steer

Call for Availability

$40,730.00 CAD
$40,730.00 CAD $40,730.00 CAD
Sale Sold out
GET MORE INFO
×

SKU:22318

Dingo 323 Mini Skid Steer

Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Dump Angle 34 deg
Dump Height 47 in. / 119.3 cm
Engine Displacement 674 cc (41 cu. in.)
Engine Horsepower 22.5 hp
Engine Make Kohler
Engine Model Command Series CH23
Fuel Tank 11.2 gal. / 42.4 L
Fuel Type Gasoline
Ground Clearance 5.8 in. / 14.7 cm
Ground Speed - Forward Up to 3.7 mph / 6.1 km/h
Ground Speed - Reverse Up to 3.7 mph / 6.1 km/h
Height 48.7 in. / 123.7 cm
Hinge Pin Height 66 in. / 167.6 cm
Hydraulic High Flow 10.8 GPM
Hydraulic High-Flow Hydraulic Circuit 10.8 GPM
Hydraulic Low Flow 4 GPM
Hydraulic Pressure 3,250 PSI
Length 62 in. / 157.5 cm
Length - With Bucket 82.2 in. / 208.8 cm
Max Operating Height 91.2 in. / 231.6 cm
Oil Capacity 2 qt / 1.9 L
Rated Operating Capacity* 515 lbs / 233.6 kg
Reach - Fully Raised 28 in. / 71.1 cm
Reservoir Capacity 17 gal. / 6.4 L
Tip Capacity 1,030 lbs / 467 kg
Track Length 96.6 in. / 245.3 cm
Track Width 5.9 in. / 14.9 cm
Weight 1,567 lbs / 711 kg
Wheelbase 28 in. / 71.1 cm
Width - With Narrow Tires 35 in. / 88.9 cm
Width - With Standard Tires 40.5 in. / 102.8 cm
