Description:

Features:

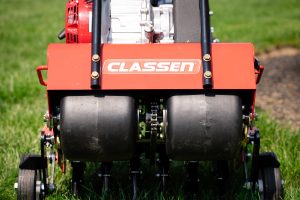

• Dual front drums provide exceptional maneuverability and eases end of row turning
• Steerable tine bank eases maneuverability and end-of-row turning
• Balancing productivity and size, aerator easily passes through a 36” gate
• Fold-down handle for compact transport and storage
• Tie-down/lift handles ease transport
• Ergonomic foam grip handle for user comfort
• The unique tine engagement handle is easy to lift and lower
• Tine engagement lock prevents accidental tine drop during transport
• Easy to remove weights

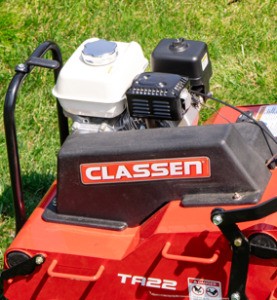

• Honda® GX120 Engine

Specifications:

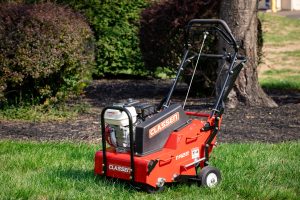

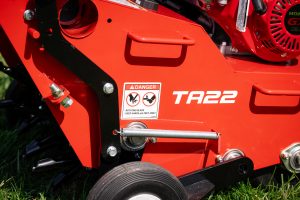

• Model: TA22H
• Engine: Honda GX120
• Transmission: Belt Drive
• Fuel Capacity: 0.5 gal (2 L)
• Speed: 4.2 mph forward, no reverse
• Aerating:
• Width: 21 in (53.3 cm)
• Max Depth: 3 in (7.6 cm)

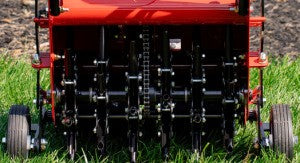

• Tines: 36
• Core Diameter: 0.75 in (1.9 cm)
• Hole Pattern: 3.4" x 7" (8.6 x 17.8 cm)
• Holes per sq ft: 6.5
• Max Productivity: 32,300 sq ft/hour
• Weights & Wheels:
• Removable Weights: 21.5 lbs (9.8 kg) each
• Front Drum: 9.5 in (24.1 cm), HDPE
• Wheels: Solid rubber (Front & Rear)
• Dimensions:
• Size: 46" x 30" x 48" (117 x 76 x 122 cm)
• Folded Size: 37" x 30" x 25" (95 x 76 x 64 cm)
• Weight: 270 lbs (122 kg)
• Warranty: 2 years
